Automatic bottle labeling machine
This automatic labeling machine is suitable for round bottle labeling.
It can label front label, back label and neck label.
It can label front label, back label and neck label.
Product description
Introduction:
This automatic labeling machine is suitable for round bottle labeling.
It can label front label, back label and neck label.
The machine adopts PLC and touch screen system.
The operation language is in English.
Product parameter
model | TPP-TB3 |
Suitable bottle size | height 25-300mm, Diameter 25-100mm. (It is related to the size proportion of the product) |
Suitable label size | length20-285mm, width20-175mm
|
Labeling speed | 15-45pcs/minute (It is related to the size of bottles and label size) |
Labeling precision | ±1mm |
dimension | 2400mm*1200mm*1530mm |
Total power | 1.75kw Main machine: 1kw, conveyor: 0.75kw |
voltage | 220V/50HZ, 1phase |
weight | 185Kg |

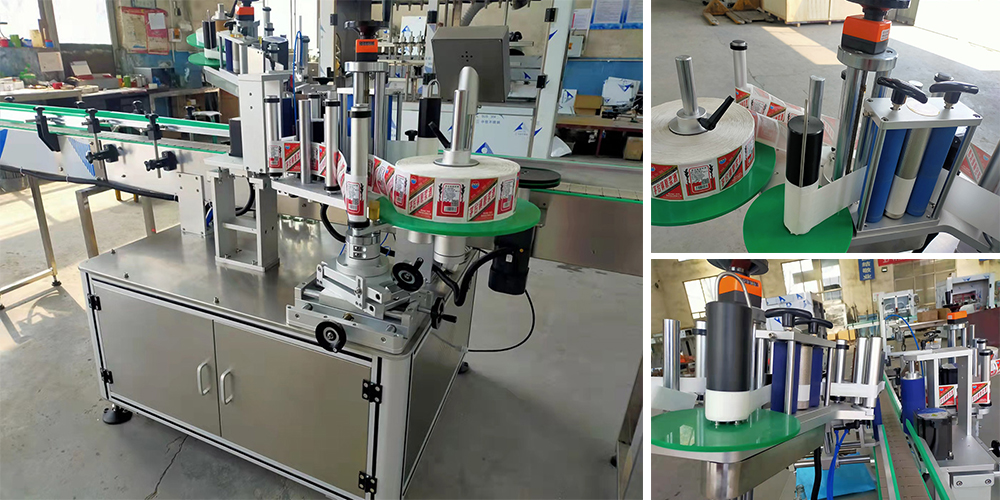

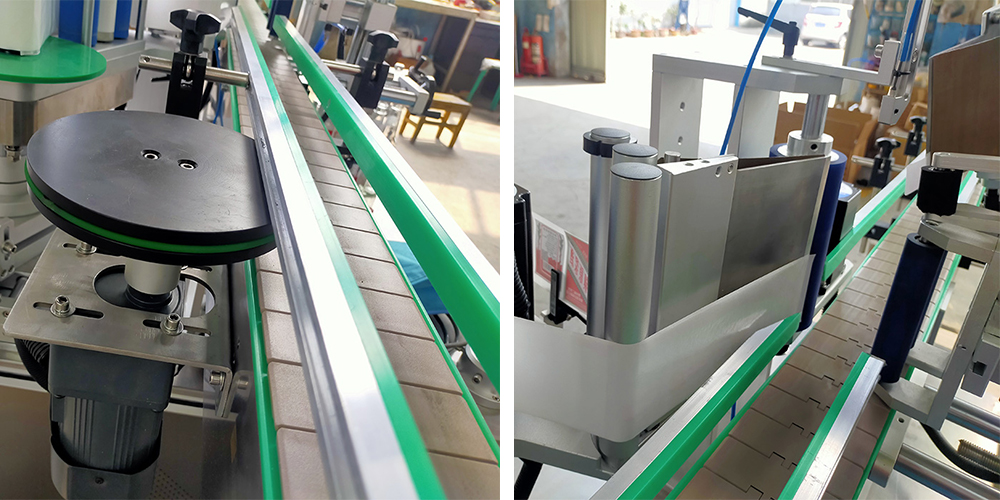

Product picture
