Half automatic hose filling and sealing machine
Product Description
*All contact materials and some related parts of the machine are made of high quality stainless steel, the parts that need cleaning are selected for quick change device, easy to remove and wash.
*All use plastic pipe and compound pipe as packaging materials, you can safely choose this machine.
*Cosmetics industry, adhesives industry, shoe polish industry and other related industries to choose the best
Product Parameter
Model | TPP-GF-B |
Voltage | 220V±10% |
Power consumption | 350W*2,250W*2 |
Production capacity | 10-40pcs/minute |
Dimension | 1100*800*1600mm |
The weight | 210kg |
Work pressure | ＞0.4Mpa( user needs to prepare air compressor) |

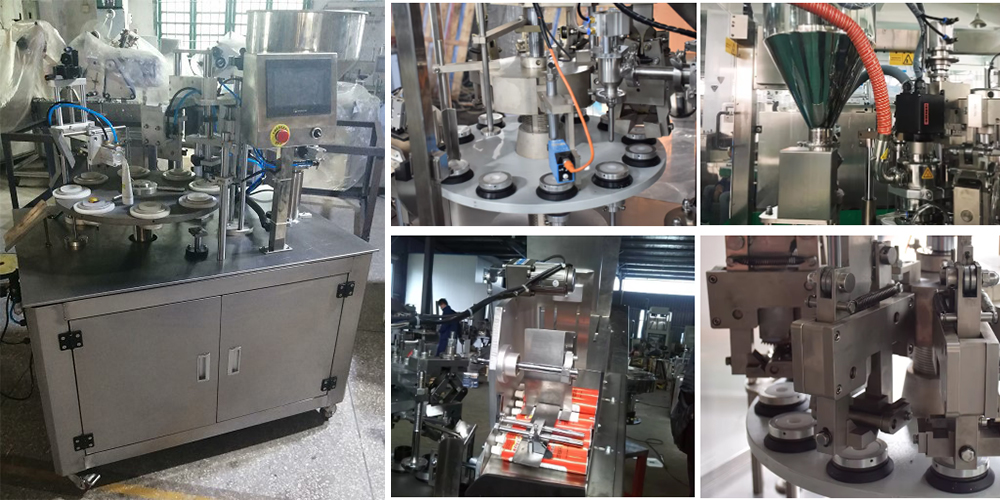

Product Picture
Product Workflow
Manual tube insertion → Automatic alignment → Filling → Automatic sealing → Automatic tube dispensing
Product Advantage
PLC program control, strong universality, complete functions, sealing tail appearance beautiful, neat, sealing firm, good stability. At the same time, to meet the filling requirements of different viscosity can be equipped with a variety of different specifications of filling head.
1. The transmission part is closed below the platform, which is safe and reliable and pollution-free;
2. It is easy to observe, operate and maintain the filling and sealing tail part installed above the platform;

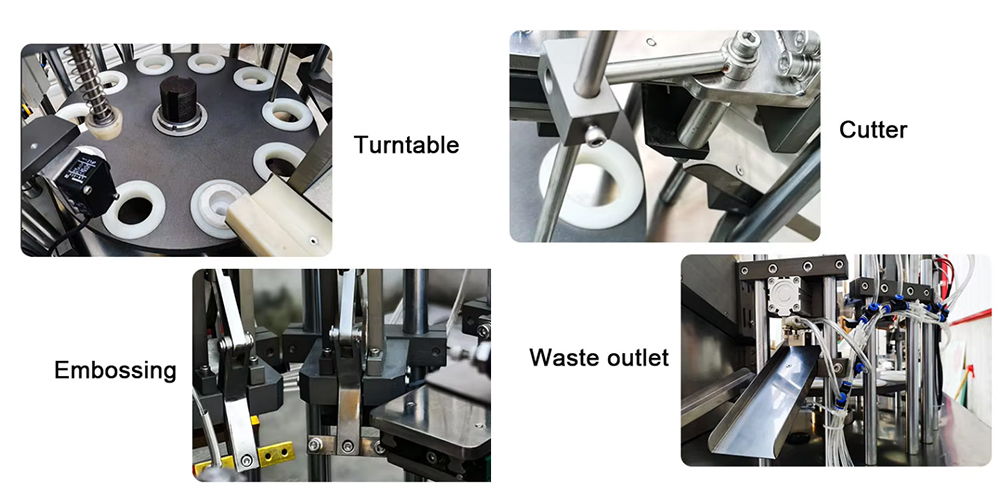

3, rotary disk driven by CAM, fast speed, high precision;
4. Manual tube loading ensures accurate access to tube seat;
5. Photoelectric calibration workstation, with high-precision probe, stepper motor and other control hose pattern in the right position
6. The nozzle is equipped with a cutting mechanism to ensure the filling quality;
7. The inner heating device of the tube tail is adopted for sealing the tail;
8. The typing code workstation will automatically print the code on the position required by the process;
9, shaping manipulator shear hose tail into a right Angle or rounded corner for selection;
Product Features
The part in contact with the material is made of 304 stainless steel;
The connection of each part is in the form of quick installation, which is convenient for disassembly and cleaning;
High quality pneumatic components are used.
