Ice Cream Cone Making Machine
Product Introduction
1.The same kind of mould can exchange and one machine can match many kinds of mould to exchange.
2.Producing different shapes of cone which provides three specification: big (80-100), middle (60-80) and small (40-60) according to capacity (ml)
3.Designing and making different kind of cone according to specifications, capacity, color and shapes as customer offer.
Product Parameters
Model | TPP-1 | TPP-2 | TPP-2C | TPP-4C
| TPP-10 |
Output per time | 1pcs | 2pcs | 2pcs | 4pcs
| 10pcs |
Capacity(pcs/hour) | 40-50 | 50-60 | 50-60 | 100-120
| 250-300 |
Baking period | 1-2min | 1-2min | 1-2min | 1-2min
| 1-2min |
Open Moulds method | Manual | Manual | Manual | Manual | Manual |
Motor(KW) | 1.2kW | 1.5KW | 1.5KW | 2.4kw
| 5KW |
Dimension | 32*20&20cm | 52*32*42cm | 40*34*45cm | 42*45*72cm | 87*70*140 cm |
Weight | 20kg | 52kg | 48kg | 72kg
| 200kg |

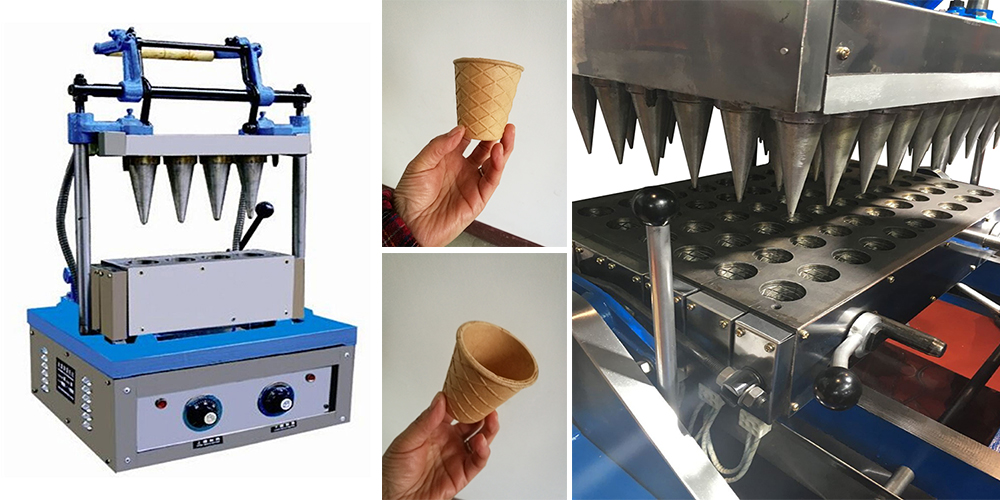

Product Pictures
